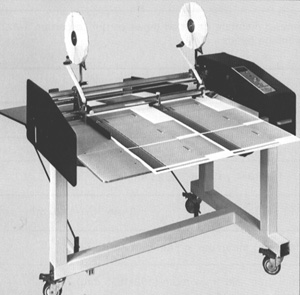

STIK-IT(TM) Tape Applicators - Models 2290 and 4280



The STIK-IT(TM) Line of Pressure Sensitive Tape Applicators, Models 2290 and 4280 can apply STIK-IT Double Coated Tapes or Regular, Opaque, Permanent and Security Seal Transfer Tapes in 1/2", 3/4" or 1" widths, accurately and quickly to press sheets or trimmed pieces. It will handle most any stock and weight, from 2 mil clear plastic to 50 point board.

Simplicity of operation and economical to use, the
STIK-IT(TM) Tape Applicators provide a high speed system of producing complete self-sticking Business Forms, Window Banners or P.O.P. display pieces in any Bindery, Finishing, Letterpress, Offset or Silk Screen Plant. It can also be adapted for use in a variety of industrial applications.

With the end user in mind, these handsomely designed, durably constructed Pressure Sensitive Tape Applicators create greater profits for you.

See Specifications Below!


Taping Head closeup showing construction
detail and simplified threading of tape.



Electro-Mechanical construction of drive
and spotting assembly.


Easy to operate control panel with counter.




STIK-IT(TM) DOUBLE COATED AND TRANSFER TAPES ARE AVAILABLE ONLY FROM
TAPE SERVICE, LTD. AND ARE DESIGNED SPECIFICALLY FOR USE ON STIK-IT(TM)
PRESSURE SENSITIVE TAPE APPLICATION EQUIPMENT.




MODEL NUMBER

STIK-IT(TM) MODEL 2290

STIK-IT(TM) MODEL 4280

STANDARD EQUIPMENT

Two mirror image taping heads with our unique Kam-Katch(TM) cutting control, spotting attatchment, variable speed drive, LCD sheet counter, delivery sheet stacker, extension leaf for feed-in side, tool kit, operators manual and technicians manual.

TAPE APPLICATION RANGES

2-3/4" (70mm) distance between tapes center to center. 1-1/2" (38mm) with mirror imaging heads.

PLACEMENT ACCURACY

+/- 1/16" in strip or spot mode

TAPE APPLYING HEADS

6 - maximum

8 - maximum

TAPE TYPES

Pressure sensitive and double coated

TAPE WIDTHS (STANDARD)

1/2", 3/4", 1", (13, 19, 25.4mm)

SHEET STOCK RANGE



WIDTH

2"- 24" (51-610 mm)

2" - 44" (51-1120 mm)

LENGTH STRIP MODE

4" (102 mm) minimum, no limit on maximum

LENGTH SPOT MODE

4" minimum - 66" maximum (102-1675 mm)

THICKNESS

2 - point clear plastic to 50-point board

OPERATING SPEED

Bodine DC variable speed drive: 70-100 fpm (21.4-30.5 mpm)

POWER SUPPLY

Single phase, 110-115 volt, 50/60 Hz., 6 amps

FLOOR SPACE REQ'D.



LENGTH

72" (1829 mm)

72" (1829 mm

WIDTH

40" (1016 mm)

60" (1524 mm)

TABLE HEIGHT

36" (914 mm)

36" (914 mm)

NET WEIGHT

355 lbs. (161 kg)

475 lbs. (216 kg)

SHIPPING WEIGHT

550 lbs. (250 kg)

700 lbs. (318 kg)




DOES NOT REQUIRE COMPRESSED AIR

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE





Taped Samples Available upon Request





Call or Fax us today to have one of our taping
specialist working with you on your job right now!
